Roof & Wall Thimble

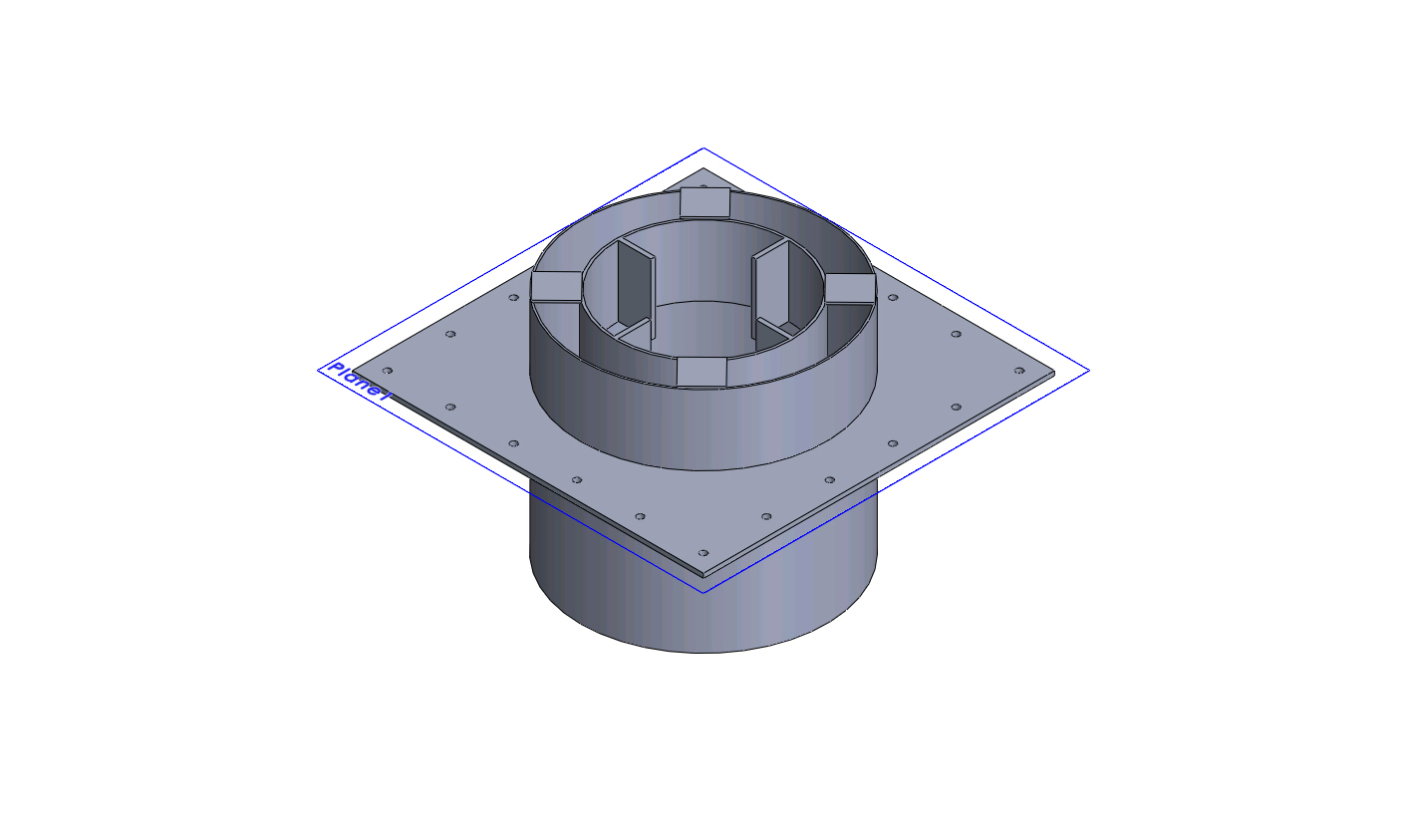

DME offers a heavy duty style Roof and Wall thimble for combustible applications. Fabricated with a 2” thick 2300 degree rated high temperature insulation with built in pipe guide eliminating Hot Spots.

DOWNLOAD ROOF & WALL THIMBLE SPEC SHEET

[one_half]

[image source_type=”attachment_id” source_value=”1316″ title=”insulated roof and wall thimble” lightbox=”true”]

Compact Design Meets NFPA 37 Requirements

FEATURES:

DME offers a heavy duty style Roof / Wall exhaust pipe thimble for combustible applications. Fabricated with a 2” thick 2300 degree rated high temperature insulation with built in pipe guide eliminating Hot Spots.

Standard construction carbon steel with High heat black enamel finish.

Available in Stainless Steel.

Pitched roof design available. (Specify Pitch)

Designed with structural integrity.

[/one_half]

[one_half_last]

[image source_type=”attachment_id” source_value=”1318″ title=”non insulated roof and wall thimble” lightbox=”true”]

Compact Design Meets NFPA 37 Requirements

FEATURES:

When an exhaust pipe passes thru a noncombustible concrete or cinder block wall or roof, DME has the solution. Non Insulated exhaust thimble are Fabricated with standard carbon steel construction, and a built in pipe guide that eliminates Hot Spots.

Standard finish High heat black enamel.

T-304 and T-316 Stainless Steel available.

Pitched roof design available.

Designed with structural integrity.

[/one_half_last]
